Since 1982 Automated Water & Effluent Ltd have continued to supply instrumentationdosing and control equipment for use in the Process Control, Water Treatment, and Effluent Treatment sectors.

Our website features information on our range of products designed for process control, water treatment and effluent treatment professionals. As well as our measurement and control equipment products we also offer a full range of packaged solutions, from simple combination back plate and manifold systems, stand alone dosing skids through to designed and built solutions for multi-parameter process control applications - please take a look at our Services section for more information.

Since our foundation in 1982, we've continued to develop and evolve our range - so if there is a specific product you're looking for but can't find on our website then please don't hesitate to get in touch by calling our knowledgeable sales team on 01785 254 597.

You can also view our catalogue online and get in touch to request pricing so you can get the best deal available.


pH neutralisation system for waste-water

Waste-Water pH Neutralisation System

Our latest case study is on how we supplied a turn-key solution which corrects the pH of waste-water from a customers process. The system was desigined to satisfy the following requirements:-

  • As a complete unit, skid mounted for easy transportation and location on to the customers site
  • To correct the pH of waste-water from a number of processes including:-
    • Pre-Treatment
    • De-Ionised Water Regeneration
    • Plating Shop Rinse Water
  • Complete with all documentation and approved technical drawings
  • With a commissioning visit from our service engineers to ensure that the system was fully operational as agreed with our customer.

Click Here to find out more



pH Electrode Range

There is a secret for the accurate measurement of pH which is the use of a good pH electrode.

Firstly - there are a number of different terms used for a device which is used to measure pH. We break these down as follows:-

pH Sensor

We use this term to broadly cover any type of device used to measure pH.

pH Probe

We reserve the term pH probe to mean our industrial housed pH sensors — if you're looking for either a submersion or inline type of pH sensor then please visit the pH probe section.

pH Electrode

We reserve this term to mean a glass bodied pH sensor. These are often referred to as laboratory pH electrodes, or just pH electrodes and that's the term we use to differentiate the two types of sensor.

Now that we have identified that we're using a pH electrode as our pH sensor, the next part is selecting the right pH electrode. There is a bewildering choice of pH electrodes, where a differing or more aggressive application has resulted in a technical improvement on a basic pH electrode.

If we start with a glass bodied pH electrode as our standard base, we can then work out the different elements that are engineered for application specific pH measurement.

pH electrode reference

This is the porous material that allows the reference material inside the electrode to be in contact with the solution that we're measuring.

There are a number of types of reference junction for pH electrodes. Our standard reference is a circular reference that runs around the outside of the glass bulb. This type of reference is called a peripheric or annular junction. The other types available are separate reference junctions, which are very old fashioned, or a wick type reference junction.

An annular reference is porous; it doesn't block, has an even flow of reference material and is our preferred method of delivery of the reference material.

A wick type reference offers a cost saving over an annular reference and are perfectly acceptable in applications where the solution being measured won't block the wick junction.

pH electrode junction

A standard electrode will have a single junction allowing the reference material to be in contact with the solution. This is perfect for most applications as the response time is very quick, meaning any change to the pH measurement is accurately represented on a high quality pH controller.

The disadvantage is that some applications and some chemicals will result in electrode poisoning.

This is where the solution being measured reacts with the reference material (KCl solution derivative or polymer) or the Ag-AgCL (Silver-Silver-Chloride) electrode.

Using a double junction we have a barrier between the Ag-AgCl and the KCl. If you have this problem we would recommend looking at a double junction pH electrode.

Note - An alternative option is to use an electrode which has a calomel reference. Contact us for more information on this option.

pH electrode reference material

The reference material inside the pH electrode can vary too. The solutions we use are proprietary and we have a standard gel which is used for temperatures up to 60ºC and then high temperature gels which have been tested to 120ºC.

pH electrode glass, connectors and low conductivity

There are other elements affecting the ability of a pH electrode to work in some environments, and if you'd like to discuss pH electrodes in more detail please get in touch - we do love a good chat about pH electrodes!

Some other areas for consideration include the glass type. We have 5 different types of glass that we use; some specifically for measuring changes in pH value, others to prevent the leaching of materials in low conductivity solutions.

The body material is also a consideration - we standardise on glass, but we do offer epoxy bodied electrodes where cost is a concern.

Finally one key consideration is the connection type. We prefer to use a BNC connector on our electrodes, but we can manufacture tagged ends, spade types, and most electrode connection types. If in doubt - just get in touch!

pH Electrode Range


9015-10B

9015-10B

Our epoxy bodied pH electrode model 9015-10B is a cost effective pH electrode which offers precision readings.

The 9015-10B in designed to be used in non-aggressive environments, such as swimming pools, hydroponics applications, laboratory and light industrial environments.

Suitable for use at temperatures from 0 - 60ºC

View Product


9069-10B

9069-10B

The 9069-10B is a standard glass bodied pH electrode

The 9069-10B pH electrode is glass bodied and has a single junction, ryton flared cap, 10 feet of connecting cable and offers precision measurement

Designed for laboratory or light industrial use where precision pH measurement is paramount.

Operating temperature of 0 - 60ºC

View Product


9093-10B

9093-10B

Sealed Combination pH electrode model 9093-10B with single junction and our standard peripheric non-fouling reference junction

The 9093-10B can stand a higher temperature than most standard electrodes with a reference solution rated up to 100ºC.

Designed for tough industrial applications and maintains a precise pH reading. Its also compatible with our industrial inline pH electrode holders

View Product


9092-10B

9092-10B

Sealed Double Junction pH electrode model 9092-10B.

The double junction design is for use in applications where the measured compound can react with silver. Specifically the silver-silver-chlorine (Ag-AgCl) reference. The sealed double junction is designed to prevent this from happening, which is known as electrode poisoning.

The 9092-10B combines precision measurement, excellent repeatability, non-fouling, is resistant to electrode poisoning and is rated up to 100ºC

This electrode is designed for harsh applications

View Product


9072-10B

9072-10B

Low conductivity pH electrode model 9072-10B

Specifically designed for applications involving low conductivity water.

With a low special low impedance electrode and over-sized domed glass bulb for precision readings in low conductivity water applications.

Even with a low conductivity solution the 9072-10B offers precision measurement, excellent repeatability, non-fouling, resistant to electrode poisoning and electrode leaching even in low conductivity water environments.

While this electrode is excellent at low conductivities water applications, it does offer a lower pH reading range and a reduced temperature, being rated for use between a pH range of 0 - 11pH and suitable for a temperature of 0 - 50ºC

View Product


9044-10B

9044-10B

High Temperature pH Electrode Model 9044-10B

Designed specifically for use where the solutions can get very hot - the 9044-10B uses a gel based reference to resist high temperature.

The double junction resists electrode poisoning and offers precision measurement, excellent repeatability, non-fouling reference even in high temperature applications.

Rated for temperatures from of 0 - 120ºC

View Product


9392-10B

9392-10B

Replacement pH Electrode Model 9392-10B acts as a replacement for our retractable inline lock-n-load systems

The 9392-10B is a sealed combination double junction replacement electrode with standard glass bulb.

Available with a stainless steel sheath for use with he stainless steel lock-n-load electrode system

This special replacement electrode is long bodied for use with the lock-n-load and is supplied with 3 metres of connecting cable

Suitable for temperatures from 0ºC to 100ºC

View Product


9037-10B

9037-10B

High Alkaline pH Electrode 9037-10B is designed to accurately measure the upper pH ranges right up to 14.00pH

Normally at this range - sodium ion error occurs giving a false pH reading, the 9037-10B is one of very few electrodes that accurately read at this range.

The reference is a special gel material and glass bulb is a unique dome shame for precision measurements above 12 pH.

The range is limited to readings between 2 - 14 pH and and suitable for a temperature from 0 - 100ºC

View Product


9060-10B

9060-10B

Rugged pH electrode model 9060-10B is a newer model for us.

With an epoxy bodied sealed combination electrode with rugged pH glass and tuff tip magna-flow reference junction more commonly seen in our industrial pH probe range

The tuff tip and rugged flat pH glass is designed to minimise the chance of electrode breakage while maintaining precision measurement, excellent repeatability, it doesn't foul and it's ideal for laboratory or industrial applications.

Suitable for a range of 0 - 13 pH and a temperature of 0 - 100ºC

View Product


9069-S8

9069-S8

Our standard Glass pH electrode the 9069 but fitted with an with S8 Connector and a PG13.5 thread

Still maintains precision measurement and excellent repeatability in both light industrial and laboratory applications.

Suitable for a temperature of 0 - 60ºC.

View Product


9015-S8

9015-S8

Our cost effective epoxy bodied model 9015 only fitted with a PG13.5 thread and an S8 connector.

Still great for swimming pool applications, hydroponics, and light industrial applications and is a great low cost PG13.5 threaded pH electrode.

Suitable for use at temperatures from 0 - 60ºC

Overall An excellent pH electrode where having a PG13.5 thread and S8 connector is a must.

View Product

9015-10B

Budget pH Electrode with epoxy body

budget ph electrode model 9015 10b

Low Cost pH electrode with plastic body - model 9015-10B introduction

By constructing the body of the pH electrode in epoxy, we have managed to bring the cost down to make a low budget pH electrode while still enabling precision pH readings.  This electrode offers a fast response time and stable reading. By avoiding particularly harsh environments the operational life of the pH electrode can be extended.  We recommend this electrode for light laboratory use, swimming pools and the wet leisure industry as well as for hydroponics usage.


Budget pH Electrode for swimming pools and hydroponics

The 9015-10B general purpose budget pH electrode is designed for use with portable pH meters, in light laboratory applications and for swimming pool and hydroponics applications. The 9015-10B is a sealed combination budget pH electrode and has a low impedance glass bulb, single junction reference and a silver chloride element.

The mounting cap on the budget pH Electrode model 9015-10B is Ryton with a small flange for mounting the pH electrode into our PES range of inline pH electrode holders.


Budget pH Electrode Model 9015-10B Connection Types and cable length

The 9015-10B pH electrode is available with a number of connection types. As standard, we supply the 9015-10B with 3 metres of connecting cable and a BNC fitting.

For custom fitting types, please see the below table for the ordering number and options:-

  • Specifications

    Specifications

    Budget pH Electrode

    Model No:- 9015-10B

    Range:- 0-13 pH

    Operating temperature:- 0-60ºC

    Electrode Type:- Low cost for swimming pools and hydroponics applications

    Junction:- Single Junction

    Reference:- Wick type, Silver-Silver-Chloride Reference

    Dimensions:- 110mm Long x 12mm ø

    Additional:- 10 Feet connecting cable and BNC plug as standard

  • Ordering Information

    Model NumberCable LengthConnector
    9015-10B 3 Metres BNC Connector (Most Common)
    9015-10T 3 Metres Stripped & Tinned Connections

    For more information on the connection type please take a look at our pH electrode connection types page.

    Electrodes with a longer cable or custom cable length are available to order.

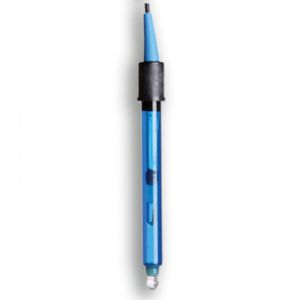

9069-10B

Glass pH Electrode

Glass pH Electrode Model 9069 10B

The standard in glass bodied sealed combination pH electrodes, which are designed for laboratory and light industrial use. It is constructed in glass which allows us to use a non fouling annular ceramic reference junction. This is important because it offers a very fast response time and extremely stable reading.


Glass pH Electrode Model 9069-10B Features & Benefits

The 9069-10B general purpose glass pH electrode can be used with our range of portable pH meters and more commonly with our pH controller range in inline fittings for light industrial applications. The 9069-10B is a sealed combination glass pH electrode with a low impedance glass bulb, single perhipheric annular ceramic reference junction and a silver, silver chloride element.

The mounting cap on the Glass pH Electrode model 9069-10B is Ryton with a small flange for mounting the pH electrode into our PES style holders.

The 9069-10B is the standard in pH electrodes. The annular reference doesn't block, allowing the electrode to react to any changes in pH. A significant improvement to the older wick style references. The internal salt bridge and high quality electrode glass ensures an accurate reading and exceptional pH electrode operational life.

The other electrodes in our range are designed for specific applications where high temperature, high alkaline values, low conductivity or other elements are present. For an excellent pH electrode for general purpose applications, the 9069-10B is a stand out performer. If you're unsure whether your application is suitable for this electrode, please don't hesitate to get in contact with us, using the "request more information" button.


Glass pH Electrode Model 9069-10B Connection Types and cable length

The 9069-10B pH electrode is available with a number of connection types.  As standard, we supply the 9069-10B with 3 metres of connecting cable and a BNC fitting.

For custom fitting types, please see the below table for the ordering number and options:-

  • Specifications

    Specifications

    Glass pH Electrode

    Model No:- 9069-10B

    Range:- 0-13 pH

    Operating temperature:- 0-60ºC

    Electrode type:- The best selling glass pH electrode

    Junction Type:- Single Junction

    Reference Type:- Non-fouling Peripheric Annular Ceramic with Silver - Silver Chloride reference

    Dimensions:- 110mm Long x 12mm ø

    Additional:- 10 feet of connecting cable and BNC plug it's also the perfect all round pH electrode

  • Ordering Information

    Model NumberCable LengthConnector
    9069-10B 3 Metres BNC Connector (Most Common)
    9069-10T 3 Metres Stripped & Tinned Connections

    For more information on the connection type please take a look at our pH electrode connection types page.

    Electrodes with a longer cable or custom cable length are available to order.



9093-10B

Combination pH Electrode

combination ph electrode model 9093 10B

A glass bodied sealed combination pH electrode, designed for laboratory and industrial use.  The pH electrode is constructed in glass with a sealed single non-fouling peripheric ceramic reference junction. The electrode has a silver - silver chloride reference element.


Combination pH Electrode Model 9093-10B Feature & Benefits

The 9093-10B combination pH electrode is widely used with our pH controller range.  Being suitable for tougher laboratory applications, the electrode is easily paired with one of our portable pH meters.  The 9093-10B pH electrode offers precision measurement; excellent repeatability; non fouling perpheric ceramic reference junction and due to the specialised filling, is suitable for a temperature range of 0-100ºC

The mounting cap on the Combination pH Electrode model 9093-10B is Ryton with a small flange for mounting the pH electrode into our PES style holders.


Combination pH Electrode Model 9093-10B Connection Types and cable length

The 9093-10B pH electrode is available with a number of connection types. As standard we supply the 9093-10B with 3 metres of connecting cable and a BNC fitting.  For custom fitting types, please see the below table for the ordering number and options:-

  • Specifications

    Specifications

    Combination pH Electrode

    Model No:- 9093-10B

    Range:- 0-13 pH

    Operating temperature:- 0-100ºC

    Electrode type:- Glass Combination pH electrode

    Junction:- Single Junction

    Reference Type:- Non-fouling Peripheric Annular Ceramic with Silver - Silver Chloride reference

    Dimensions:- 110mm Long x 12mm ø

    Additional:- An excellent glass combination pH electrode, complete with 10 feet of connecting cable and BNC connector

  • Ordering information

    Model NumberCable LengthConnector
    9093-10B 3 Metres BNC Connector (Most Common)
    9093-10T 3 Metres Stripped & Tinned Connections

    For more information on the connection type please take a look at our pH electrode connection types page.

    Electrodes with a longer cable or custom cable length are available to order.



9092-10B

Double Junction pH Electrode

double junction ph electrode model 9092 10B

Our Sealed Combination Double Junction pH Electrode has a non-fouling annular ceramic reference and is designed to prevent electrode poisoning from compounds that react with silver, by using a double junction reference element.


Double Junction pH Electrode Model 9092-10B Introduction

The 9092-10B is a glass bodied sealed combination double junction pH electrode, designed for use in industrial applications, including those where the solution measured includes elements which can react with silver.

The 9092-10B Double Junction pH electrode is suitable for use in laboratory and in industrial conditions. The 9092-10B is manufactured in glass with a sealed non-fouling peripheric ceramic reference junction.

The 9092-10B has a double junction, separating the silver - silver chloride reference element from the measured solution. By using a combination of clever chemistry and smart engineering in our double junction pH electrode we've eliminated the use of specialised or environmentally hazardous reference materials such as Mercury Chloride (HgCl) electrodes.


Double Junction pH Electrode Model 9092-10B Features & Benefits

The 9092-10B Double Junction pH electrode offers: precision measurement; excellent repeatability; non-fouling peripheric ceramic reference junction and is suitable for a temperature range of 0-100°C.  It is also resistant to electrode poisoning due to the special double junction.

The 9092-10B pH electrode is widely used with our pH controller range. For tougher laboratory applications, the electrode is easily paired with one of our portable pH meters. The mounting cap on the Double Junction pH Electrode model 9092-10B is Ryton with a small flange for mounting the pH electrode into our PES style holders.


Double Junction pH Electrode Model 9092-10B Connection Types and cable length

The 9092-10B pH electrode is available with a number of connection types. As standard, we supply the 9092-10B with 3 metres of connecting cable and a BNC fitting.

For custom fitting types please see the below table for the ordering number and options:-

  • Specifications

    Specifications

    Double Junction pH Electrode

    Model No:- 9092-10B

    Range:- 0-13 pH

    Operating temperature:- 0-100ºC

    Electrode type:- Glass Combination Double Junction pH electrode

    Junction:- Double Junction

    Reference Type:- Non-fouling Peripheric Annular Ceramic with isolated Silver - Silver Chloride reference

    Dimensions:- 110mm Long x 12mm ø

    Additional:- Combines polymerised reference materials within double junction, non-fouling peripheric reference junction and low impedence pH glass.

  • Ordering Information

    Model NumberCable LengthConnector
    9092-10B 3 Metres BNC Connector (Most Common)
    9092-10T 3 Metres Stripped & Tinned Connections

    For more information on the connection type please take a look at our pH electrode connection types page.

    Electrodes with a longer cable or custom cable length are available to order.



More Articles ...

Double Confinement for Chemical Dosing

New

Double confinement systems are used mostly for safety as an uncontained leak can be a high safety risk to operators and other staff if your dealing with concentrated chemical reagents.

The P3436 pH Transmitter

New

The P3436 pH Transmitter with 4-20mA Output and Modbus is the ideal solution for converting its output into an industry standard 4-20mA output signal, and can be easily connected to the most common PLC or other remote supervision and control systems.

pH Scale

New

New in our knowledge base section is our interactive guide to the pH scale - a useful reminder on how different pH values relate to common chemicals.

Chemical Compatibility Checker

New

We've launched our new tool the Chemical Compatibility Checker - our tool allows you test the chemical resistance of commonly used industrial materials, search by chemical or by material.

Search
