High pressure brominator range for use with both bromine and chlorine or trichlor tablets

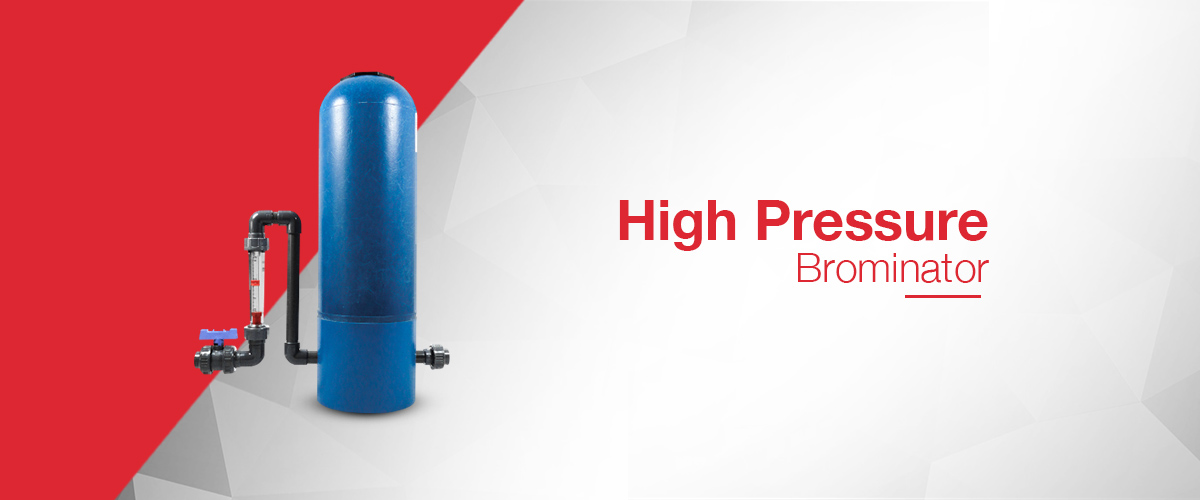

High Pressure Brominator

High pressure brominators are designed for use in industrial applications or where a large a quantity of disinfected water is required, such as large commercial or municipal pools.

The high pressure brominators are manufactured in a specially formulated GRP and are suitable for use with either bromine or chlorine (trichlor) tablets. Each brominator is supplied complete with a valves and pipework manufactured in cPVC and should be installed inline into the process - this ensures that the flow to the process passes directly through the brominator to provide disinfected or sanitised water.

High Pressure Brominators and Inline Equipment

The process water may pass through a number of different stages including booster pumps, recirculation pumps, filters or heat exchangers. The high pressure brominators are suitable for use in these environments when installed as the final piece of equipment in the process flow.

Keeping the high pressure brominator at the end of the process is designed to protect the other installed apparatus from issues arising from chemical compatibility.

If it is not possible to install the high pressure brominator inline - it may be worth considering a high capacity offline chemical feeder if the pressure is less than 3.3 Bar.

High Pressure Brominators Pressure

Inside the specially formulated GRP enclosure, the internal pipework has been designed to ensure a cascading effect within the brominator, which produces even chemical usage and a consistent disinfected flow output. As such each of our high pressure brominators are rated for a maximum pressure of 5.3 Bar.

High Pressure Brominator Flow Rates and Capacity

Each of our brominators are supplied ready to be installed into pipework to provide disinfected water to a process. We supply the high pressure brominators complete with:-

  • Flow regulating valve
  • Flow meter
  • Drain valve

All the pipework on the high pressure brominators is manufactured in cPVC.

The brominators are available in 3 different sizes each suitable for the different flow rates and capacities, the full high pressure brominator range can be seen below:-

High Pressure Brominator Range


BB12-FM

BB12-FM

High pressure brominator model BB12-FM has a capacity of 12Kg and is designed to feed solid biocides or other corrosive water treatment chemicals at a pressure of upto 80 PSI (5 Bar).

The BB12-FM is designed to be mounted directly into a stream and is supplied complete with inlet, variable area flow meter, drain valve and outlet to ensure precision delivery of disinfected water.

Designed predominently for cooling tower treatment, the BB12-FM can be paired with control equipment to provide automated chemical delivery.

View Product


BB18-FM

BB18-FM

High pressure brominator model BB18-FM has a large capacity of 18Kg and is designed to feed solid biocides or other corrosive water treatment chemicals at a pressure of upto 80 PSI (5 Bar).

The BB18-FM is designed to be mounted directly into a stream and is supplied complete with inlet, variable area flow meter, drain valve and outlet to ensure precision delivery of disinfected water.

Designed predominently for cooling tower treatment the BB18-FM can be paired with control equipment to provide automated chemcial delivery.

View Product


BB36-FM

BB36-FM

High pressure and high capacity brominator model BB36-FM has a huge capacity of 36Kg and is designed to feed solid biocides or other corrosive water treatment chemicals at a pressure of upto 80 PSI (5 Bar).

The BB36-FM is designed to be mounted directly into a stream and is supplied complete with inlet, variable area flow meter, drain valve and outlet to ensure precision delivery of disinfected water.

Designed predominently for cooling tower treatment the BB36-FM can be paired with control equipment to provide automated chemcial delivery.

View Product
