CWFA 80

3" Flanged Water Meter

3 Inch or 80mm Flanged Water Meter

3" flanged water meter for measuring the volume of flow through pipework with pulsed output and flow totalisation.


3" Flanged Water Meter CWFA 80 Introduction

The CWFA 80 is a 3" flanged contacting head water meter, manufactured with a cast iron body for use with clean water and ideally suited for process applications where accurate measurements of large volumes of water flow are required.

Designed for use with clean water, such as towns water, the CWFA 80 is rated to a temperature up to 30°C and a pressure of up to 16 Bar. The CWFA 80 may be installed in any position and provides precision flow measurements with a maximum normal flow rate of 40 m3 / Hr.

The robustly constructed water meter is designed to be bolted to connecting flanges in pipework to become a permanently installed flow meter, allowing the 3" (80mm) flanged water meter to measure the flow passing through it.

The 3" flanged water meter CWFA 80 has a high sensitivity turbine impulse sensor which drives a large accurate gear train to provide both totalisation and the pulsed output.

By design, the turbine is the only moving part of the water meter that is in contact with the water itself.  This is so that we can offer exceptional operating life from our CWFA series of flanged water meters.


3" Flanged Water Meter With Pulsed Output

The turbine sensor is both antimagnetic and non-hygroscopic and drive a large and accurate gear train.

The resulting digital signal is pulsed via volt free contacts proportional to the flow rate - the K Factor of the 3" (80mm) Flanged Water meter CWFA 80 is K = 100.0 or K = 1000.0 giving 1 pulse per 100 litres or 1000 Litres respectively.

The pulsed output signal is rated at 24 V - 0.2 A and the supplied cable length is 2 metres.

The CWFA 80 can be easily integrated into a dosing pump; batch controller; external counter or other piece of process control equipment that corresponds to a pulsed input, proportional to liquid flow rate.


3" Flanged Water Meter With Totalisation

As well as delivering a pulsed output signal the CWFA 80 has a mechanical non-resettable counter which is displayed on the front of the water meter.  The 5 digit mechanical counter displays the total volume of liquid that has flowed through the water meter in M3.

The mechanical counter and water meter frontage are covered in a transparent cover manufactured in clear epoxy resin.


3" Flanged Water Meter CWFA 80 Features & Benefits

The CWFA 80 is an excellent way of measuring clean water entering a process.  Used frequently on evaporative cooling tower make up water, softener feed water, in plating baths makeup water, to control flow proportional dosing and in any application where the volume of water flowing in a pipeline needs to be accurately measured.

The CWFA 80 is of simple design and proven construction.  Designed to provide reliable, accurate and dependable measurement and control of many industrial processes, the CWFA 80 is a water meter with 3" (80mm) flanged connection, so securing it in place for a long operational life is as simple as possible.

CWFA 80 Specifications

  • Specifications

    Specifications

    3" Flanged Threaded Water Meter

    Model No:- CWFA 80

    Connection:- 3" flange (80mm)

    Body:- Coated cast iron case and head

    Turbine:- Non-hygroscopic and antimagnetic

    Constant / K Factor:- K = 100.0 or K= 1000.0 (1 pulse per 100.0 or 1000.0 Litres)

    Contacting Head Output:- Reed Switch rated at 5 VA

    Start Flow:- 0.4 m/ Hr

    Max Temporary Flow:- 80 m/ Hr

    Flow 1 Meter Head Loss:- 90 m/ Hr

    Normal Flow:- 40 m/ Hr

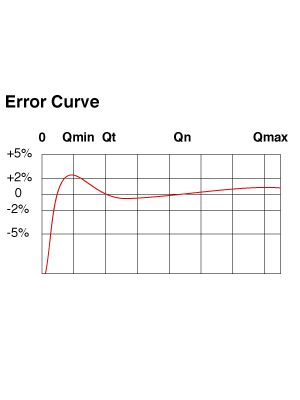

    Min. Flow for 2% Accuracy:- 7.0 m/ Hr

    Min. Flow for 5% Accuracy:-  2.5 m/ Hr

    Max Working Pressure:- 16 Bar

    Max Temperature:- 30°C

    Min Reading:- 1 Litres

    Max Reading:- 106 m3

    Length:- 230mm

    PCD:- 160mm

    Flange Fixing Holes:- 8

    Weight:- 16 Kg

  • Features

    Features

    • Cast water meter with high sensitivity turbine sensor designed specifically for process control applications using clean water.
    • The high sensitivity non-magnetic and hygroscopic impulse sender drives a large accurate gear train to ensure precision totalisation counts and pulsed outputs.
    • No gears in the wetted area, the only moving part in contact with the water is the impeller.
    • Pulsed output with a K = 100.0 or 1000.0 constant to give 1 pulse per 100 or 1000 litres of water respectively - ideal for counting incoming makeup water.
    • Totalisation is displayed on a mechanical non-resettable counter allowing the total volume of water that has passed through the water meter to be monitoring dependably and easily.
    •  Proportional digital pulsed output signal which corresponds to the K constant - provides a useable signal to external control devices such as batch counters, controllers, dosing pumps and other control equipment.
    • Proven design of simple & construction to provide reliable, accurate, and dependable measurement and control of many industrial processes.
