9086-10B

Double Junction Redox Electrode

double junction redox electrode 9086

Double junction Redox electrode model 9086-10B is designed for operation in industrial or laboratory environments where an electrode is at risk of becoming poisoned.


Double Junction Redox Electrode 9086-10B Introduction

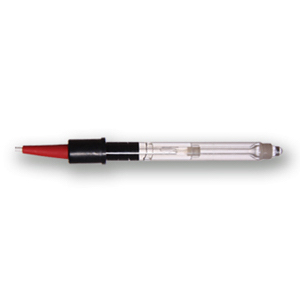

The 9086-10B is a sealed Redox electrode with a glass body, platinum band, an internal double junction, and a non fouling peripheric annular reference junction. The Redox electrode uses a polymerised salt bridge designed for use in temperatures up to 100ºC.


Double Junction Redox Electrode 9086-10B Features & Benefits

A double junction Redox electrode like the 9086-10B offers the advantage of being resistant to Redox electrode poisoning in organic compounds. Occasionally some compounds can absorbed into the Redox electrode and react with the silver silver chloride reference. The double junction 9086-10B Redox electrode has an internal junction, secondary non fouling reference and utilises two compatible but separate polymerised references which makes the Redox electrode resistant to electrode poisoning.

While being resistant to electrode poisoning the 9086-10B offers accurate mV readings across the 0 ± 2000mV range using the platinum reference band, which also ensures a rapid response time.

The 9086-10B is designed to be compatible with our range of RES inline redox electrode holders as well as our full range of Redox controllers.

Normally our 9086-10B is used in laboratory processes for aggressive oxidising or reducing reactions or if an existing Redox electrode in a process is having to be changed on a frequent basis.


Double Junction Redox Electrode 9086-10B Connection Type & Cable Lengths

The 9086-10B Redox electrode is available with a number of connection types; as standard we supply the 9086-10B with 3 metres of connecting cable and a BNC fitting.

For custom fitting types please see the below table for the ordering number and options:-

  • Specifications

    Specifications

    Double Junction Redox Electrode

    Model No:- 9086-10B

    Range:- 0 ± 2000mV

    Operating temperature:- 0-100ºC

    Electrode Type:- Platinum band, glass bodied, for laboratory or industrial applications.

    Junction:- Double Junction

    Reference:- Annular Ceramic , Silver, Silver-Chloride Reference

    Dimensions:- 110 mm Long x 12mm ø

    Additional:- 10 Feet connecting cable and BNC plug as standard

  • Ordering Information

    Model NumberCable LengthConnector
    9086-3B 1 Metre BNC Connector (Most Common)
    9086-10B 3 Metres BNC Connector (Most Common)
    9086-3T 1 Metre Stripped &amp Tinned Connections
    9086-10T 3 Metres Stripped & Tinned Connections
    9086-S8 N/A S8 Connector (No Cable)

    For more information on the connection type please take a look at our electrode connection types page.

    Electrodes with a longer cable or custom cable length are available to order.
